Home->Products->Pneumatic components->Directional Valves:

L/H/N series hand valves

L/H/N series hand valvesThere're 3 styles of the hand valves, one is L series hand pull valves, another is H series hand push valves, the other is N series electric/hand pull vales. For the former two series we have 5/2, 3/2, 5/3 ways from 1/8" to 1/2", both for normally hand push back and spring return, and for some Europe customers preferring bigger sizes hand valves, please check the PDF file for the dimensions for hand valves and see if it's what you want.

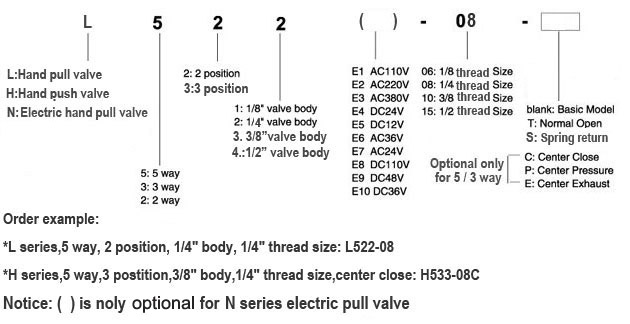

  • How to order?

    Features:

    *Controlled by hand
    *Various working style are avilable
    *Different colors are optional for body

    Specifications:

    Working medium
    Clean Air(40 micron filteration)
    Working pressure(MPa)
    0.15~0.8(N series 1.05~1.0)
    Maximum pressure (MPa)
    1.2
    Working temperature(℃)
    -5~80(N series-25~120)
    Working style
    5/2,3/2,5/3 way
    Sizes available
    1/8″,1/4″,3/8″,1/2″
