Home->Products->Pneumatic components->Penumatic Accessories:

Pneumatic plastic tubing

Pneumatic plastic tubingPolyurethane tubing and polyamide tubing are widely used in the pneumatic system to transfer the pressure air power, they’re not the most important pneumatic components in a pneumatic system, but they're necessary. Without polyurethane tubing (PU tube) and polyamide tubing (PA tube), the pneumatic system can't fit together. We provide polyurethane tubing (PU tube) and polyamide tubing (PA tube) in very good quality, precise, flexible, smooth, nice appearance, a very good solution for a complete pneumatic system.

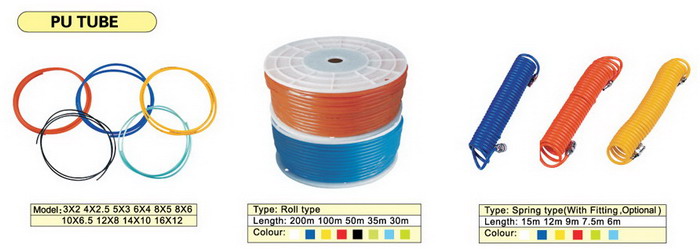

The polyurethane tubing (PU tube) normally has blue, black, orange 3 color, there're other sizes like yellow, green, red, etc. for optional.

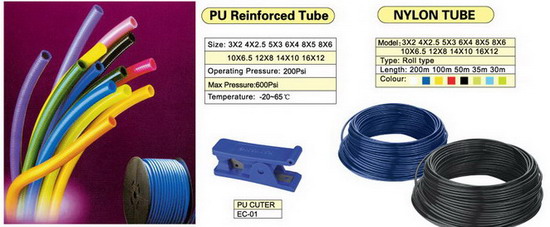

The Polyamide tubing (PA tube), also called nylon tube. Our nylon tubing normally has two types, PA 12 and PA 11-6. The PA 12 is completely done by new material, PA 11-6 is a little mixed with second material, both are of very good quality.

Both PU tubing and nylon tubing has metric sizes are from 3x2 to 16x12, optional inch size from 5/32” to 1/2”.



  • Nylon Tubing

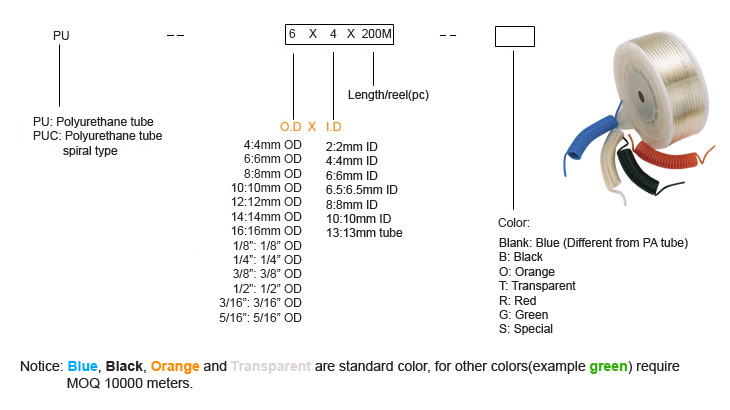

  • How to order?

    Features:

    *Good wear ability,smooth surface,low resistance,anti-rustiness and anti-scaling.
    *Flexible,easily to be bended into all kinds of shapes,easy to install.
    *High chemical and hydrolysis resistance,stable dimension,little penetration,can be used more than ten years.
    *Standard color with black, red,yellow,blue,white, optional color green, orange, etc.

    Specifications:

    Specifications
    O.D
    Thickness
    I.D
    Working Pressure
    Explosive Pressure
    Bent Radius
    (mm)
    (mm)
    (mm)
    (Mpa)
    (Mpa)
    (mm)
    Ф3X0.5
    3
    0.5
    2
    3
    4.5
    18
    Ф4X0.75
    4
    0.75
    2.5
    3.]1
    5.5
    20
    Ф4X1
    4
    1
    2
    4.5
    6.8
    30
    Ф5X1
    5
    1
    3
    3.4
    6.5
    35
    Ф6X1
    6
    1
    4
    3.2
    6.3
    40
    Ф8X1
    8
    1
    6
    2.5
    5.7
    50
    Ф10X1
    10
    1
    8
    2.6
    4.5
    65
    Ф10X1.25
    10
    1.25
    7.5
    2.7
    5.7
    65
    Ф12X1.5
    12
    1.5
    9
    2.8
    5.7
    70
    Ф14X1.5
    14
    1.5
    11
    2
    5.7
    80
    Ф16X2
    16
    2
    12
    2.5
    5.7
    130
    Ф18X1.5
    18
    1.5
    15
    1.8
    3.6
    155
    Ф23X2
    23
    2
    19
    1.7
    3.3
    120
    3/16"
    3/16"
    0.75

    3.3
    6.3
    35
    5/16"
    5/16"
    1

    2.5
    5.6
    50
    1/4"
    1/4"
    1

    2.7
    5.3
    45
    3/8"
    3/8"
    1.5

    2.8
    6.1
    50
    1/2"
    1/2"
    1.5

    3
    5.5
    80
    3/4"
    3/4"
    1.5

    2.7
    5
    125
    5/8"
    5/8"
    1.5

    2.7
    5
    125
