V Series Cylinder
 V Series pneumatic cylinders are manufactured according to ISO6431 standard and VDMA24562 standard. We have two types Tie-rod type and Mickey Mouse type, normal bore size from 32mm to 200mm. We manufacture most part of the cylinder by ourselves, from die-casting, machine to assembling for better quality control. The cylinder end covers and piston are CNC machined, and important seals are from Japan, to guarantee the pneumatic cylinder work stably and safely.
We manufacture most part of the cylinder by
ourselves, from die-casting, machine to assembling for better
quality control. The cylinder end covers and piston are CNC
machined, and important seals are from Parker, to guarantee the
pneumatic cylinder work stably and safely.
- How to order?
Features:
*Adjustable cushion on both cylinder end covers to make sure the cylinder works very smoothly, safely and with low noise.
*With self-lubricating bearing, the piston rod is lubrication free.

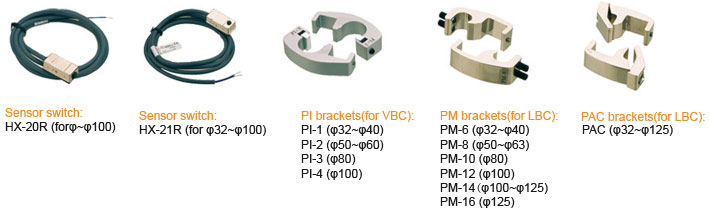

*Magnet and sufficient Fixing styles are available.
Specifications:
Cylinder Diameter(mm) |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
160 |
200 |
250 |
320 |
Acting type |
Double Acting (Single acting is optional) |
Working medium |
Clean Air(40 micron filteration) |

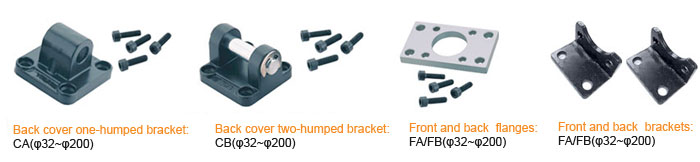

Mounting type |
Basic type FA FB CA CB LB TC TC-M
|

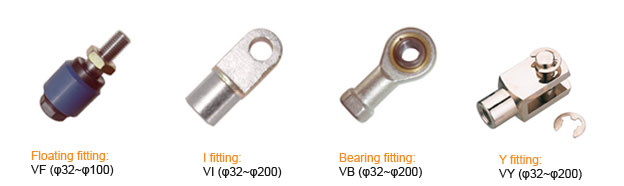

Rod end fitting type |
Basic type TY TI TF TB |
Working pressure(MPa) |
0.1～0.9 |
Max.pressure(MPa) |
1.35 |
Working temperature (℃) |
-5～70 |
Speed range(mm's) |
50～800 |
Buffer type |
Adjustable Cushion |
Buffer stroke(mm's) |
24
|
32 |
|
Thread Size(mm) |
G 1/8 |
G 1/4 |
G 3/8 |
G 1/2 |
G3/4 |
|
| ** Bore≥125mm,the dimension is the same as ISO6431 Tie-Rod cylinder. |
